Fixed Intelligent Screw Driver
Torque Range：0.05-105Nm
Danikor’s robot screwdriver is designed for automated screwdriving. It is extremely lightweight and compact, combining high accuracy and full traceability. It allows for complete error-proofing and automatic rework, fully compatible with Industry 4.0, and allows for easy integration with screw fastening robots or torque arms of your choosing. This results in a boost in production quality and a reduction in cycle time.
Application Industry
New energy vehicles
Automotive electronics
Automotive parts
3c
Communication
Home appliances
Medical care
Product Advantages
Accuracy
Standard deviation accuracy over the full torque range.
Accuracy test of hard& Soft connection conforms to ISO5393 standard.
Self-developed high precision algorithm control
Fast
Ensures accuracy and short time.
Ensure product quality and production efficiency.
Reduce setup time between different tightening requirement.
Intelligent
Record and monitor the data of full tightening process.
Upload in real time to computer and MES system.
It can store 2,000 groups of tightening results and can be expanded through SD card.
Higher curve sampling frequency and Higher data recording traceability.
Error-proofing
Abnormal monitoring of tightening process
Based on the angle monitoring of threshold torque, it can more timely and effectively find the unqualified tightening conditions such as floating lock, sliding tooth,wrong and missing, gasket missing etc.
Assembly process authority management
In the debugging interface, you need to enter the password to set the strategy and program.
Convenient
UI interaction is superior
UI interaction is superior It is convenient for the operator to set the strategy and data view.

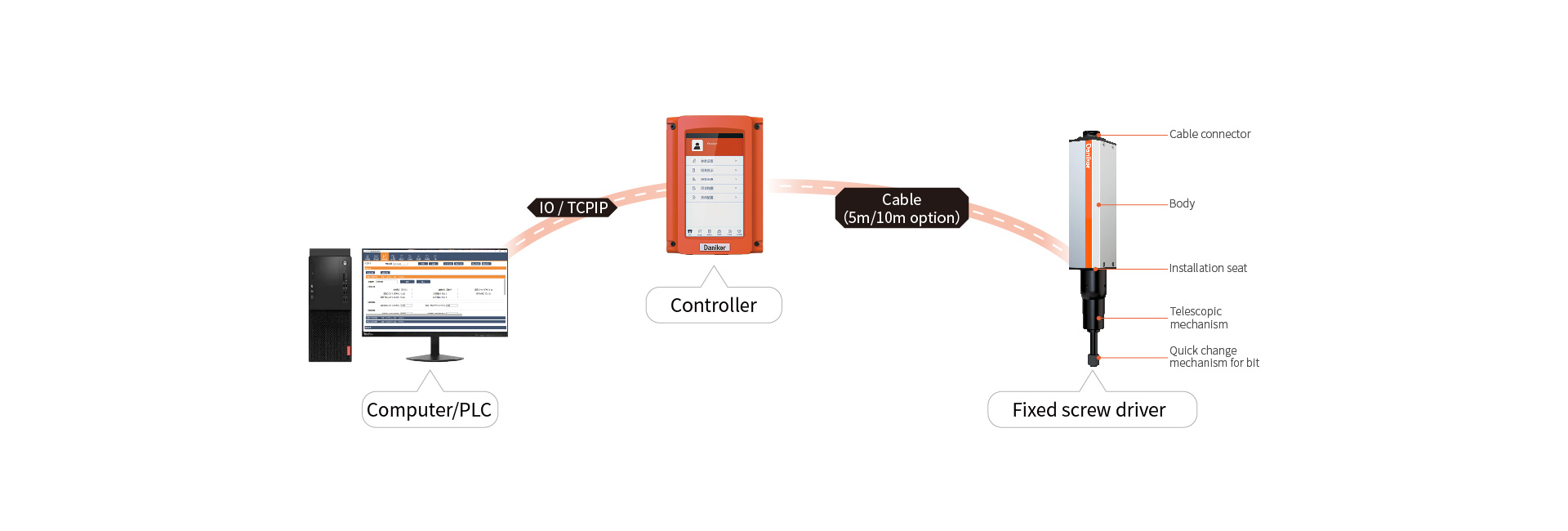

Product Structure

Product Parameters
Model Max torque /Nm Max speed /rpm Accuracy Dimension /mm Weight /kg Free range of head/mm Bit quick connector Screw driver controller Screw driver cable
PTC-ASF-4500M-0-HM0-000 0.05-0.45 1500  ±2.5% 135×46×57 0.51 - HM4 OPT-STC-C1-V1 -50W 5m/10m/15m Straight or Angle optional
PTC-ASF-0009N-0-H10-000 0.09-0.9 1500 162.6×46×57 0.81 - Hex 1/4" OPT-STC-C1-V1 -100W
PTC-ASF-0009N-0-H10-015(L) 0.09-0.9 1500 206×46×57 0.78 15 Hex 1/4"
PTC-ASF-0030N-0-H10-000 0.5-3 950 236×46×57 1.35 - Hex 1/4"
PTC-ASF-0030N-0-H10-030(L) 0.5-3 950 302×46×57 1.32 30 Hex 1/4"
PTC-ASF-0065N-0-H10-000 1.5-6.5 450 236×46×57 1.35 - Hex 1/4"
PTC-ASF-0065N-0-H10-030(L) 1.5-6.5 450 302×46×57 1.36 30 Hex 1/4"
PTC-ASF-0070N-0-H10-030(L) 1-7 830 361×70×82 2.99  30 Hex 1/4" OPT-STC-C1-V1 -200W
PTC-ASF-0120N-0-H10-030(L) 4-12 900 361×70×82 3.42 30 Hex 1/4" OPT-STC-C1-V1 -400W
PTC-ASF-0180N-0-S20-030(L) 3-18 180 321×46×57 1.66 30 Square 3/8" OPT-STC-C1-V1 -100W
PTC-ASF-0270N-0-S20-030(L) 5-27 450 361×70×82 3.46 30 Square 3/8" OPT-STC-C1-V1 -400W
PTC-ASF-0520N-0-S30-050(L) 12-52 240 450×70×82 4.51 50 Square 1/2"
PTC-ASF-1050N-0-S30-050(L) 20-105 230 498×100×108 9.69 50 Square 1/2"
