Disc Feeder
Suitable Screw Size:M0.5-M2
The Danikor Disc Screw Feeder is an exceptionally reliable machine. It uses a rotating disk to position one fastener at a time in a precise location for easy retrieval. Fasteners can be picked up using either a magnet or vacuum. This feeder is designed specifically for micro and mini screws in the electronics industry, ensuring zero jams.
Product Advantages
No Screw Jamming
? Patented products, stable material supply, improve production efficiency.
Low Failure Rate
? Intelligent fault alarm, easy maintenance and replacement.
Wide Application Range Of LDR
? Screws with LDR ≤ 1 can also be driven stably and efficiently.
Lack Of Material Detection
? Standard material shortage sensor,early warning in case of material shortage, to ensure the continuity of the feeding process and uninterrupted production.
Screw Length Detection (optional)
? Prevent mixing and improve product qualification rate.

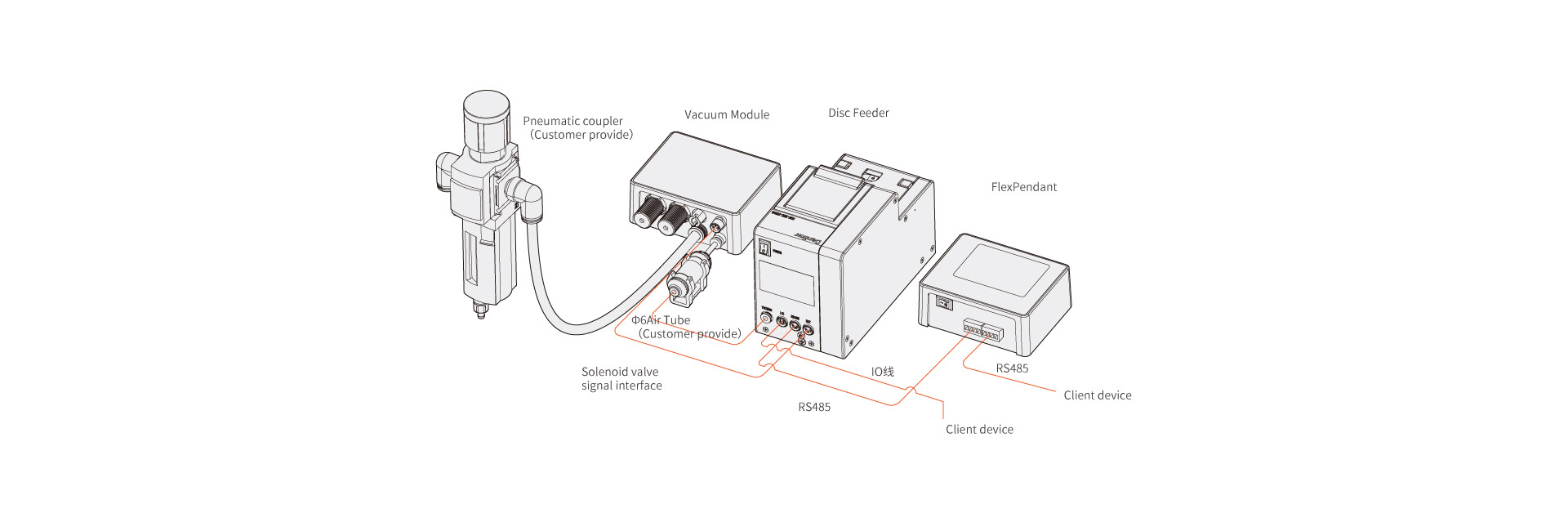

Product Structure

Product Parameters
Model FDH-SDC-70ML-BCG6- 00D0000000-T00 FDH-SDC-70ML-BCG6- 00D0000L00-T00 FDH-SDC-120ML-C1- G6-00D0000000-T00 FDH-SDC-120ML-C1-G6-00D0000L00-T00
Channel type Single channel
L * W * H/mm 175x90x133 159x82x110
Weight/Kg 1.9 1.2 1.3
Capacity/ml 70 120
Rated air pressure/Mpa 0.5-6
Power source V/Hz Equipment voltage DC24V (IO or 485 access device provides power supply)
Rated power/W 24
Air consumption m3/min 0.09
Inlet pipe diameter/mm 8
I/O m 2
Shortage function  ○  ○  ○  ○
Screw Length Detection -  ○ - ○
Detection accuracy/mm - ±0.2 - ±0.2
FlexPendant Optional
Vacuum Module Optional Muffler type Or quick plug





Type Model L * W * H mm Category Cable Vacuum Module
Vacuum Module OFD-SVM-00-V1-M 102x80x40 OFD-SVM-00-V1-M  Including 2m three-core communication line  1
Vacuum Module OFD-SVM-00-V1-Q 102x80x40 OFD-SVM-00-V1-Q   Including 2m three-core communication line  1
FlexPendant OFD-SFP-00-V3 102x86x40 OFD-SFP-00-V3 Including 2m RS485 four-core wire -



* The above data is the measured value in the laboratory.



Feeder-scope Of Application For Screws



Screw feeder model Thread diameter M Screw length L Cap diameter D Cap thickness T LDR
FDH-SDC-70ML 1~2mm Max. 7.5mm Max. 7.5mm 0.15~2mm LDR：(L+T)/D≤1
FDH-SDC-120ML 0.5~1.6mm Max. 5.5mm Max. 5.5mm 0.15~2mm LDR：(L+T)/D≤1
