handheld electric screwdriver
Torque Range：0.05-11Nm
Danikor’s industrial electric screwdriver provides the capability to set and store torque and angle data, ensuring the accuracy of tightening. It is a DC low torque screwdriver, suitable for manual assembly lines in industrial settings.
Application Industry
New energy vehicles
Automotive electronics
Automotive parts
3c
Communication
Home appliances
Medical care
Product Advantages
Accuracy
Standard deviation accuracy over the full torque range.
Accuracy test of hard& Soft connection conforms to ISO5393 standard.
Self-developed high precision algorithm control
Fast
Flexibility to respond to applications with different requirements.
Guarantee tightening quality.
Reduce setup time between different tightening requirements.
Automatically switch between different Psets
Intelligent
Record and monitor the data of full tightening process.
Real-time data upload
Real-time docking with MES system.
Data storage
You can hold more quantities and filter the number of results that are analyzed for a given program or time period.
Data traceability
Multiple curves are superimposed to facilitate depth analysis.
Error-proofing
Monitoring of abnormal tightening process
All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.
Assembly process authority management
In the debugging interface, you need to enter the password to set the strategy and program.
Job planning and superposition protection
If Job batch is inconsistent, it is required to enter password for intervention.
Convenient
Automatically learn
Automatically recommend the reference parameter range, and quickly build the tightening strategy.
Superior human-computer interaction
Visual OLED display screen,3-color light (such as NG red), buzzer and front light is convenient for operators to use.
Multiple startup forms
It can be handheld or fixed with machine, and handheld can be pressed down,triggered or remotely activated.
Rapid expansion port
Threaded external connection for quick matching vacuum suction nozzle and a fixed structure.
Multiple communication forms
RS485 RTU, TCP/IP open Protocol, extended digital I/O interface.
Multiple functions optional
Optional teaching pendant or communication module, real-time data viewing and parameter setting.

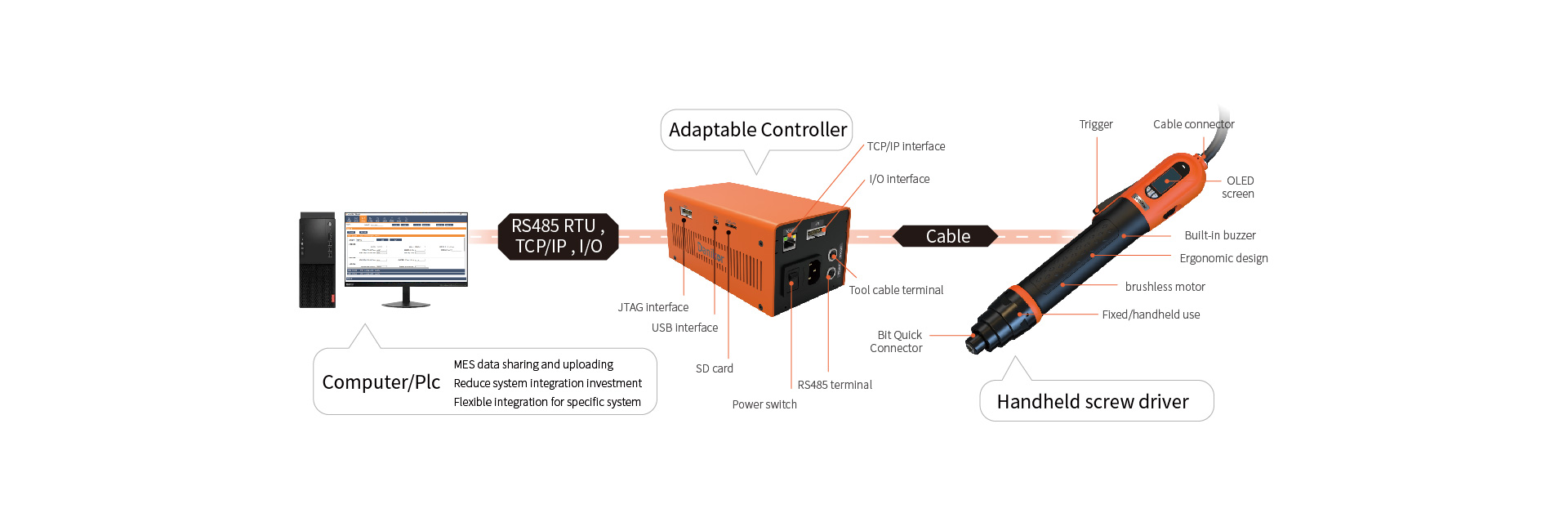

Product Structure

Product Parameters
Model Max torque /Nm Max speed /rpm Dimension /mm Grip diameter /mm Weight /g Design life MTTF Bit quick connector Starting mode Screw driver controller Screw driver cable
PTC-DSH-1800M-32-HMP-000-G2 0.05-0.18 1500 238×36 32 436 ＞10 million ＞1 million HM4  Pushed/Remote OPT-STC-DC 1-V2- 500W OPT-SCT -V2- DC1-05
PTC-DSH-5000M-32-H1P-000-G2 0.1-0.7 1500 241×36 32 466 Hex 1/4"
PTC-DSH-0020N-32-H1P-000-G2 0.7-2 950 241×36 32 486
PTC-DSH-0040N-39-H1P-000-G2 1-4 900 266.3×46 39 632
PTC-DSH-0070N-39-H1P-000-G2 1.6-7 900 266.3×46 39 717  OPT-STC-DC 2-V2- 500W   OPT-SCT-V2-DC 2-05
PTC-DSH-0110N-39-H1P-000-G2 2-11 700 266.3×46 39 827
PTC-DSH-1800M-32-HMD-000-G2  0.05-0.18 1500 242.2×36 32 465  ＞10 million  ＞1 million HM4 Pushed/Pressed/Remote  OPT-STC-DC 1-V2- 500W OPT-SCT -V2- DC1-05
PTC-DSH-5000M-32-H1D-000-G2 0.1-0.7 1500 246.9×36 32 495  Hex 1/4"
PTC-DSH-0020N-32-H1D-000-G2 0.7-2 950 246.9×36 32 515
PTC-DSH-0040N-39-HMP-000-G2 1-4 900 279.5×46 39 765
PTC-DSH-0070N-39-H1D-000-G2 1.6-7 900 279.5×46 39 850    OPT-STC-DC 2-V2- 500W   OPT-SCT-V2-DC 2-05
PTC-DSH-0110N-39-H1D-000-G2 2-11 700 279.5×46 39 960
